ENCODER-FLEX 1024 - Innovative Digital Rotary Encoder
4B has introduced the Encoder-Flex 1024, designed to monitor the position of rack and pinion gates, as well as shaft speed and angular position of distributors.

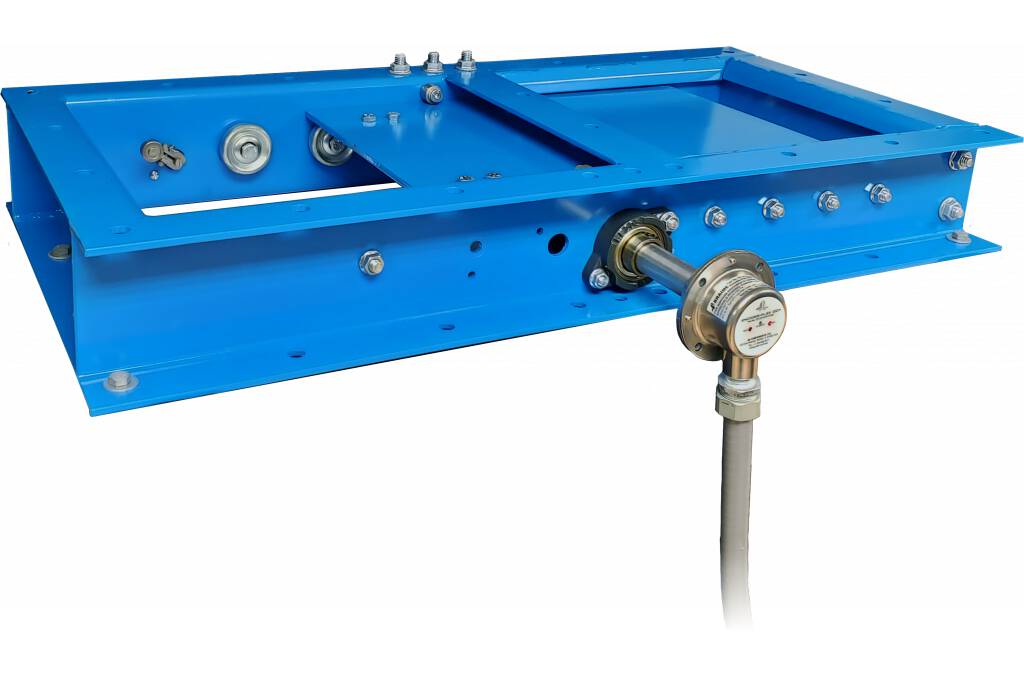

4B Group has introduced the Encoder-Flex 1024, designed to monitor the position of rack and pinion gates, as well as shaft speed and angular position of distributors. The new, ATEX-approved Encoder-Flex 1024 is changing the way slide gates are monitored. This compact rotary shaft encoder uses advanced technology to deliver a precise position from 0 to 100%.
With a compact, sleek design, the Encoder-Flex 1024 removes the bulkiness associated with traditional shaft encoders and adds the benefit of easy calibration. There is no need to open up the unit; simply apply an external magnet briefly to calibrate. Providing even more flexibility, resolution can be programmed for 1 to 1024 pulses per rotation.
All electronics on the Encoder-Flex 1024 are housed in a sealed stainless steel enclosure and are encapsulated in epoxy, protecting the device from moisture and the elements and providing maximum reliability in the field.
In addition, the Encoder-Flex 1024 provides 4-20 mA, quadrature-pulsed and Modbus RTU outputs in one single model, giving the user the versatility and flexibility to connect many different controllers and displays.
“This product is simple to install and operate and features elegant calibration”, explains 4B. ”Compared to competitive products, it’s less bulky and more robust with fewer limitations. The resolution can even be set in the field from 1 to 1024 pulses per revolution to suit virtually any application.”
