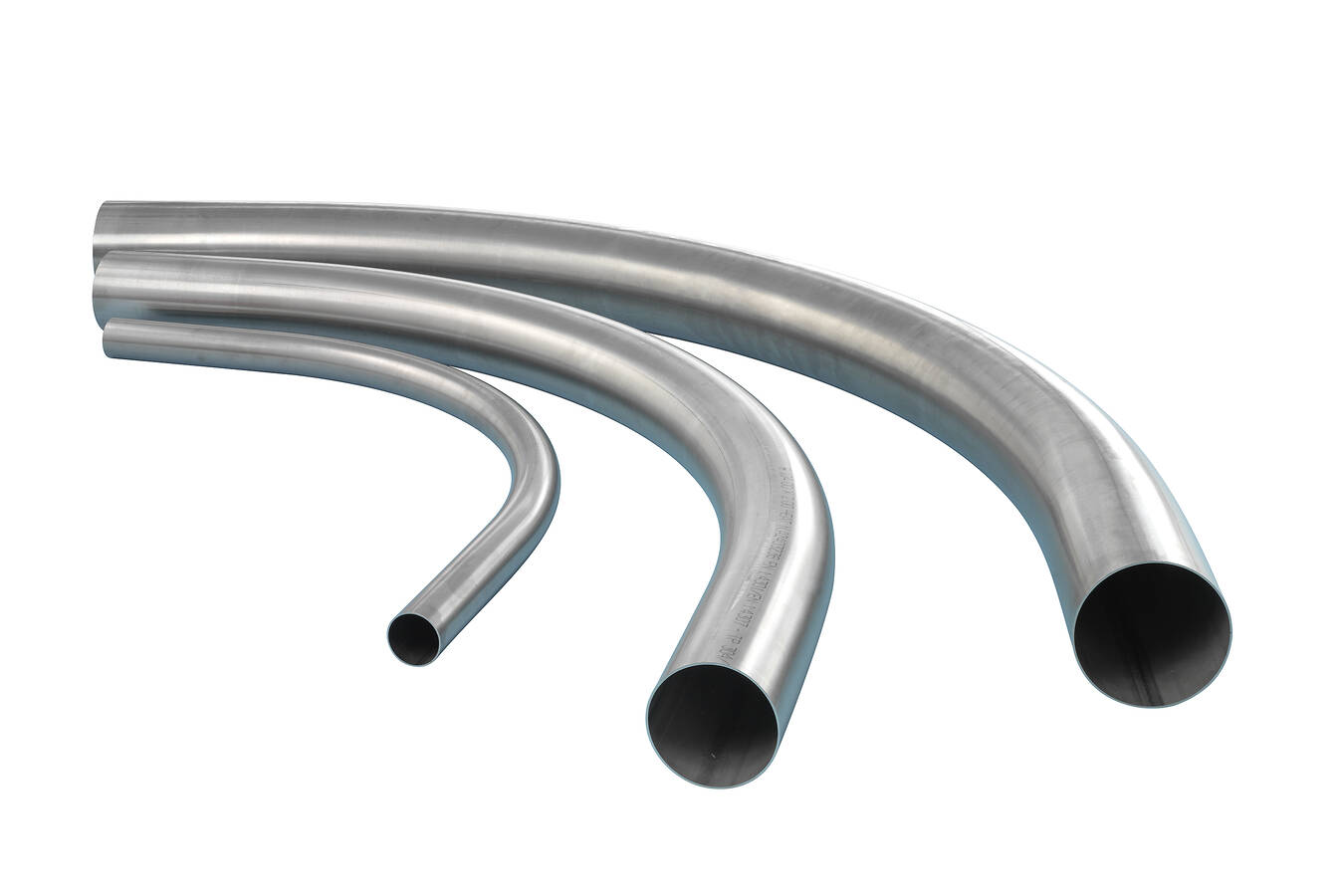

stainless steel pipe systems for pneumatic conveying systems: We produce stainless steel pipe bends, pipe couplings, branch pipes, reducers, material distriburos, suction lances - standard measurements - in stock - custom made acc. your drawing/sample Visit us in hall 12 - booth 446, we like to inform you about our products: Stainless steel pipe bends - Material: AISI 304 / 1.4301 - Diameter 38.0 mm - 206.0 mm - Radii: 75 mm - 1500 mm - for pneumatic conveying systems - available - ex stock - other materials / other measurements on demand Highly wear-resistant pipe bends - HVA NIRO® highly wear-resistant stainless steel pipe bends - Double-skin pipe bends (DWR) - stainless steel - glass pipe bends, borosilicate glass 3.3 Pipe couplings type DVK 6 - for suction conveying - Diameter: 33.7 mm - 110.0 mm - with gasket acc. purpose (natural rubber, nitrile, EPDM, silicone, viton) Pipe Couplings Type DVK-HD® - for pressure conveying - Diameter: 60.3 mm - 206.0 mm - gasket according purpose - Length: 100 mm / 150 mm / 200 mm or longer Stainless steel branch pipes, 30 °, 45 °, 90 ° - Material: AISI 304 / 1.4301 - Diameter: 38.0 mm - 206.0 mm - also formgas welded - also in highly wear-resistant

stainless steel pipe systems and components in highly wear-resistant version for pneumatic conveying systems Visit us in Hall 12.0 / Booth 12-446 - we like to inform you about our products: Products with special wear protection are: - HVA NIRO® stainless steel pipe bends - HVA NIRO® stainless steel branch pipes - HVA NIRO® stainless steel reducers Specifications - material AISI 304 / AISI 304 L - diameter from 38.0 till 168.3 mm - radii 75 / 100 / 150 / 250 / 300 / 500 / 800 / 1000 mm Advantages of HVA NIRO® products: - service life 10 to 20 times longer than stainless steel pipe bends - easy installation DWR double-skin pipe bend - DWR double-skin pipe bend are made of stainless steel, and can be supplied in different versions. - NOT suitable for foodstuffs and material changes Glass pipe bends: - made from borosilicate glass 3.3 - with a copper grounding strip - applications: conveying of abrasive materials or high throughput

HS Umformtechnik GmbH offers comfortabel ordering via B2B Webshop Features The following features are available to you after you register as a customer: from the real-time availability display of our current stock to typical webshop features such as previous order histories to the view of list and customer-specific purchase prices - all this and more can be found easily at #Customerservice Search Using the search function, you can search through our entire product range with one click. You can either search for product names or specific article numbers. Filter A filter function makes it possible to additionally filter the search results according to relevant characteristics such as diameters, wall thicknesses or materials. Compare You can add products to a comparison list in order to directly compare the product properties of two or more parts. By the way: As a registered customer, you can even search for your own article numbers when logged in. If you have not yet registered, you can do so at any time on our website. Availability
